4.3. Combining flats

There is one step in combining flats that is different from most other image combination: the flats should be scaled to a common value before combining them. This is particularly important if the flats are twilight flats in which the average image value typically changes significantly as the images are being taken.

Flats are typically grouped by filter when combining them. That is, one combined flat is produced for each filter in which flats were taken.

Combination will be done for each of the two examples in the previous notebook.

from pathlib import Path

import numpy as np
import matplotlib.pyplot as plt

import ccdproc as ccdp
from astropy.stats import mad_std
from astropy.visualization import hist

from convenience_functions import show_image
# Use custom style for larger fonts and figures
plt.style.use('guide.mplstyle')

4.3.1. Example 1

We begin by setting up an image collection for the reduced data. This data is from chip 0 of the cryogenically-cooled Large Format Camera at Palomar Observatory.

calibrated_path = Path('example1-reduced')

flat_imagetyp = 'flatfield'

ifc = ccdp.ImageFileCollection(calibrated_path)

We’ll first check what filters are present.

flat_filters = set(h['filter'] for h in ifc.headers(imagetyp=flat_imagetyp))
flat_filters
{"g'", "i'"}

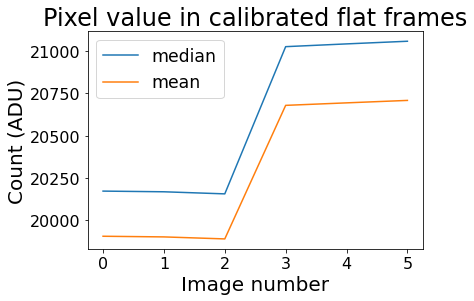

These flats are dome flats, essentially pictures of a screen in the dome illuminated by a light source, so you would not expect there to be much variable in the typical pixel value between different exposures. There is typically some variation, though, so we graph it below.

median_count = [np.median(data) for data in ifc.data(imagetyp=flat_imagetyp)]
mean_count = [np.mean(data) for data in ifc.data(imagetyp=flat_imagetyp)]
plt.plot(median_count, label='median')
plt.plot(mean_count, label='mean')
plt.xlabel('Image number')
plt.ylabel('Count (ADU)')
plt.title('Pixel value in calibrated flat frames')
plt.legend()
print(median_count)
[20173.0, 20169.0, 20156.666666666668, 21026.0, 21042.333333333332, 21058.0]
../_images/05-04-Combining-flats_8_1.png

Although this is less frame-to-frame variation than we will see in Example 2, it is about 5%. If we were to combine these without scaling the flats to a common value then the images with higher counts would effectively get more weight than the images.

There is a substantial difference between the mean and median of this data. Typically it is better to use the median because extreme values do not affect the median as much as the mean.

To scale the frames so that they have the same median value, we need to define a function that can calculate the inverse of the median given the data.

def inv_median(a):
    return 1 / np.median(a)

This function is passed into the scale argument of combine below. One combined flat is created for each filter in the data.

for filt in flat_filters:
    to_combine = ifc.files_filtered(imagetyp=flat_imagetyp, filter=filt, include_path=True)
    combined_flat = ccdp.combine(to_combine,
                                 method='average', scale=inv_median,
                                 sigma_clip=True, sigma_clip_low_thresh=5, sigma_clip_high_thresh=5,
                                 sigma_clip_func=np.ma.median, signma_clip_dev_func=mad_std,
                                 mem_limit=350e6
                                )

    combined_flat.meta['combined'] = True
    dark_file_name = 'combined_flat_filter_{}.fit'.format(filt.replace("''", "p"))
    combined_flat.write(calibrated_path / dark_file_name)
WARNING: FITSFixedWarning: 'datfix' made the change 'Set MJD-OBS to 57403.000000 from DATE-OBS'. [astropy.wcs.wcs]
WARNING:astropy:FITSFixedWarning: 'datfix' made the change 'Set MJD-OBS to 57403.000000 from DATE-OBS'.
INFO:astropy:splitting each image into 4 chunks to limit memory usage to 350000000.0 bytes.
INFO: splitting each image into 4 chunks to limit memory usage to 350000000.0 bytes. [ccdproc.combiner]
INFO:astropy:splitting each image into 4 chunks to limit memory usage to 350000000.0 bytes.
INFO: splitting each image into 4 chunks to limit memory usage to 350000000.0 bytes. [ccdproc.combiner]

4.3.1.1. Discussion of Example 1

We will begin by checking that the right number of combined flats have been created. There were two filters, g' and i' in the raw data so there should be two combined flats. We need to refresh the ImageFileCollection for the reduced data because new files, our flats, have been added to them.

ifc.refresh()
ifc.files_filtered(imagetyp=flat_imagetyp, combined=True)
array(["combined_flat_filter_g'.fit", "combined_flat_filter_i'.fit"],
      dtype='<U27')

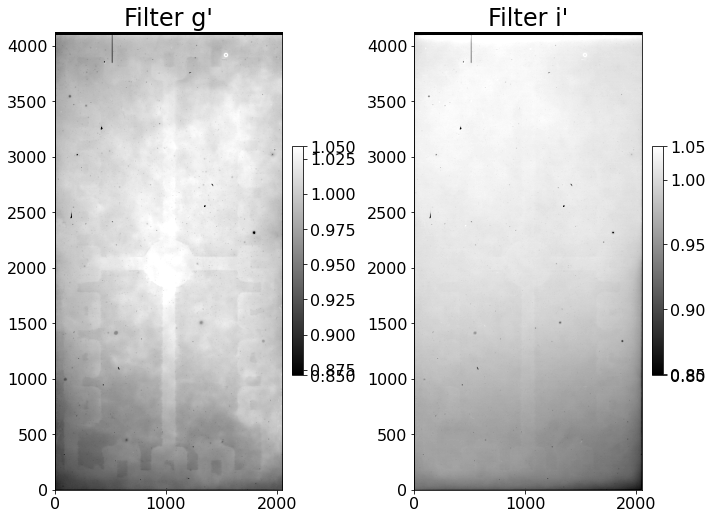

That looks good. The two flats are displayed below.

fig, axes = plt.subplots(nrows=1, ncols=2, figsize=(10, 20), tight_layout=True)

for ccd, axis in zip(ifc.ccds(imagetyp=flat_imagetyp, combined=True), axes):
    show_image(ccd.data, cmap='gray', fig=fig, ax=axis)
    title = "Filter {}".format(ccd.header['filter'])
    axis.set_title(title)
WARNING: FITSFixedWarning: 'datfix' made the change 'Set MJD-OBS to 57403.000000 from DATE-OBS'. [astropy.wcs.wcs]
WARNING:astropy:FITSFixedWarning: 'datfix' made the change 'Set MJD-OBS to 57403.000000 from DATE-OBS'.
../_images/05-04-Combining-flats_17_1.png

The first thing to notice is that the flats are different in these two filters. That is expected because one of the elements in the optical path, the filter, is different.

The pattern of electronics in the flat images is because this is a backside-illuminated CCD. The light-detecting pixels are on the under side of the chip and the light needs to pass through the chip to reach the sensor. The small dark spots are places where the chip wasn’t thinned uniformly.

Compare this with Example 2 below, which shows a flat taken with a frontside-illuminated camera.

4.3.2. Example 2

The data in this example is from a thermoelectrically-cooled Andor Aspen CG16M. These flats are twilight flats, taken just after sunset.

calibrated_path = Path('example2-reduced')

flat_imagetyp = 'flat'

ifc = ccdp.ImageFileCollection(calibrated_path)
flat_filters = set(h['filter'] for h in ifc.headers(imagetyp=flat_imagetyp))
flat_filters
{'r'}

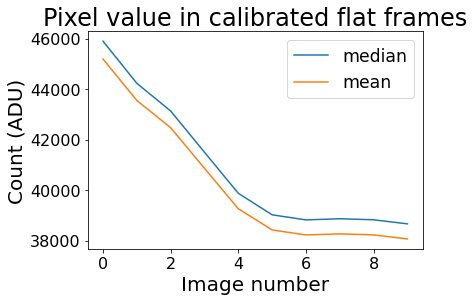

Twilight flats typically differ more frame-to-frame than dome flats, as shown in the figure below.

median_count = [np.median(hdu.data) for hdu in ifc.hdus(imagetyp=flat_imagetyp)]
mean_count = [np.mean(data) for data in ifc.data(imagetyp=flat_imagetyp)]
plt.plot(median_count, label='median')
plt.plot(mean_count, label='mean')
plt.xlabel('Image number')
plt.ylabel('Count (ADU)')
plt.title('Pixel value in calibrated flat frames')
plt.legend()
print(median_count)
[45891.90222222222, 44225.99888888889, 43128.94777777778, 41495.89333333333, 39871.95111111111, 39019.864, 38817.97997777778, 38863.88776666667, 38822.93813333334, 38661.95832222222]
../_images/05-04-Combining-flats_23_1.png
def inv_median(a):
    return 1 / np.median(a)

for filt in flat_filters:
    to_combine = ifc.files_filtered(imagetyp=flat_imagetyp, filter=filt, include_path=True)
    combined_flat = ccdp.combine(to_combine,
                                 method='average', scale=inv_median,
                                 sigma_clip=True, sigma_clip_low_thresh=5, sigma_clip_high_thresh=5,
                                 sigma_clip_func=np.ma.median, signma_clip_dev_func=mad_std,
                                 mem_limit=350e6
                                )

    combined_flat.meta['combined'] = True
    dark_file_name = 'combined_flat_filter_{}.fit'.format(filt.replace("''", "p"))
    combined_flat.write(calibrated_path / dark_file_name)
WARNING: FITSFixedWarning: RADECSYS= 'FK5 ' / Equatorial coordinate system
the RADECSYS keyword is deprecated, use RADESYSa. [astropy.wcs.wcs]
WARNING:astropy:FITSFixedWarning: RADECSYS= 'FK5 ' / Equatorial coordinate system
the RADECSYS keyword is deprecated, use RADESYSa.
INFO:astropy:splitting each image into 22 chunks to limit memory usage to 350000000.0 bytes.
INFO: splitting each image into 22 chunks to limit memory usage to 350000000.0 bytes. [ccdproc.combiner]

4.3.2.1. Discussion of Example 2

We expect only one combined flat because there was only one filter. The ImageFileCollection is refreshed before we query it because the combined flats were added after the collection was created.

ifc.refresh()
ifc.files_filtered(imagetyp=flat_imagetyp, combined=True)
array(['combined_flat_filter_r.fit'], dtype='<U31')

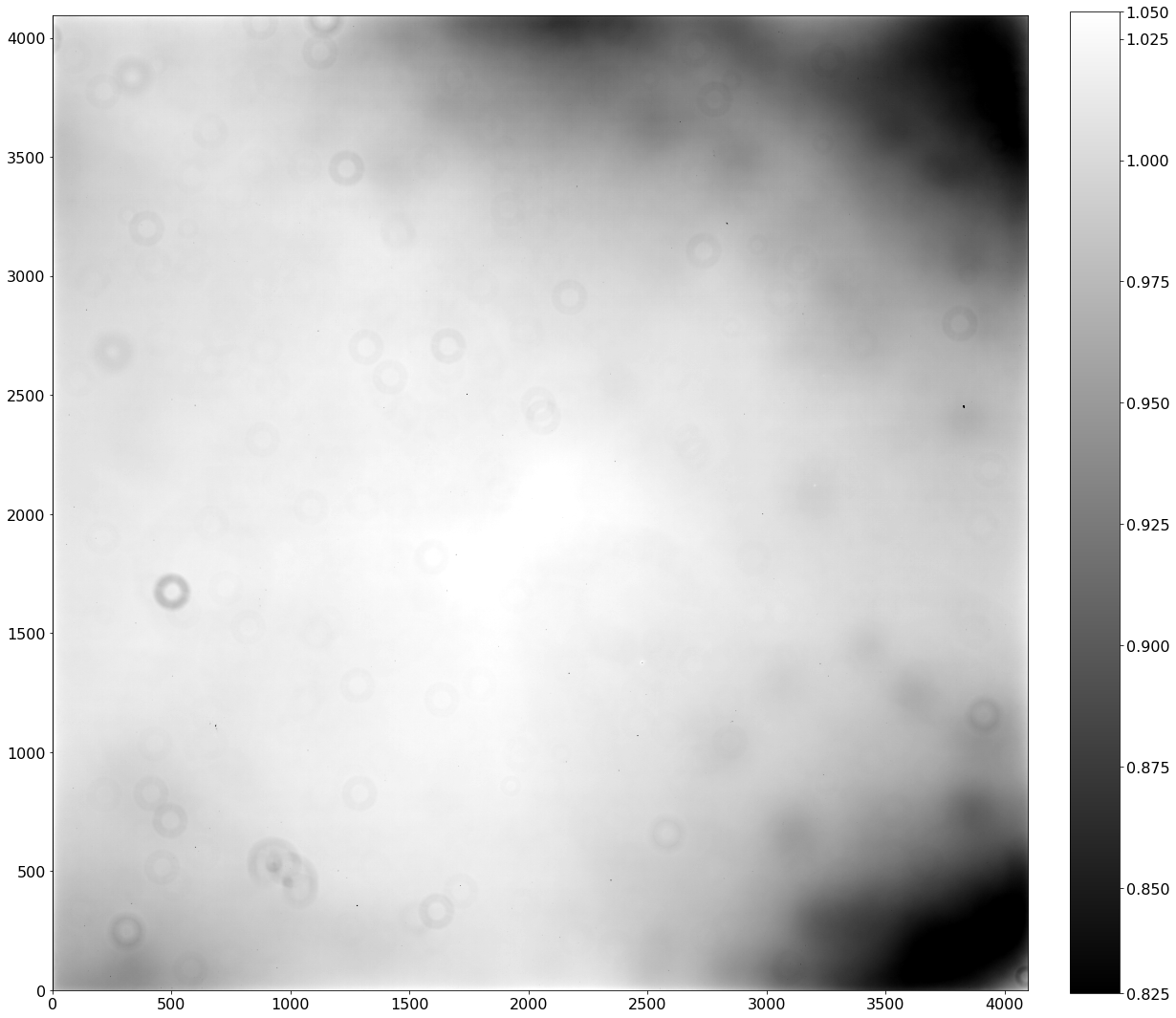

The combined flat is displayed below.

show_image(combined_flat, cmap='gray', figsize=(10, 20))
WARNING: The following attributes were set on the data object, but will be ignored by the function: uncertainty, mask, meta, unit [astropy.nddata.decorators]
WARNING:astropy:The following attributes were set on the data object, but will be ignored by the function: uncertainty, mask, meta, unit
../_images/05-04-Combining-flats_29_1.png

This flat looks very different than the one in Example 1 because this CCD is frontside-illuminated and the previous one is backside-illuminated. That means the sensor is on the top of the chip and the light does not pass through the sensor chip itself to reach the sensors. Though only one filter is shown here, the flat field looks slightly different through other filters on this camera.
