5.1. Two science image calibration examples#

from pathlib import Path

from matplotlib import pyplot as plt
import numpy as np

from astropy import units as u
import ccdproc as ccdp

from convenience_functions import show_image
# Use custom style for larger fonts and figures
plt.style.use('guide.mplstyle')

5.1.1. Overview#

ccdproc provides a couple of ways to approach calibration of the science images:

  • Perform each of the individual steps manually using subtract_bias, subtract_dark, and flat_correct.

  • Use the ccd_process function to perform all of the reduction steps.

This notebook will do each of these in separate sections below.

def find_nearest_dark_exposure(image, dark_exposure_times, tolerance=0.5):
    """
    Find the nearest exposure time of a dark frame to the exposure time of the image,
    raising an error if the difference in exposure time is more than tolerance.

    Parameters
    ----------

    image : astropy.nddata.CCDData
        Image for which a matching dark is needed.

    dark_exposure_times : list
        Exposure times for which there are darks.

    tolerance : float or ``None``, optional
        Maximum difference, in seconds, between the image and the closest dark. Set
        to ``None`` to skip the tolerance test.

    Returns
    -------

    float
        Closest dark exposure time to the image.
    """

    dark_exposures = np.array(list(dark_exposure_times))
    idx = np.argmin(np.abs(dark_exposures - image.header['exptime']))
    closest_dark_exposure = dark_exposures[idx]

    if (tolerance is not None and
        np.abs(image.header['exptime'] - closest_dark_exposure) > tolerance):

        raise RuntimeError('Closest dark exposure time is {} for flat of exposure '
                           'time {}.'.format(closest_dark_exposure, a_flat.header['exptime']))


    return closest_dark_exposure

5.1.2. Example 1#

The data in this example is from chip 0 of the Large Format Camera at Palomar Observatory. In earlier notebooks we determined that:

First, we create ImageFileCollections for the raw data and the calibrated data, and define variables for the image type of the flat field and the science images (there are, unfortunately, no standard names for these).

reduced_path = Path('example1-reduced')

science_imagetyp = 'object'
flat_imagetyp = 'flatfield'
exposure = 'exptime'

ifc_reduced = ccdp.ImageFileCollection(reduced_path)
ifc_raw = ccdp.ImageFileCollection('example-cryo-LFC')

Next, a quick look at the science images in this data set.

lights = ifc_raw.summary[ifc_raw.summary['imagetyp'] == science_imagetyp.upper()]
lights['date-obs', 'file', 'object', 'filter', exposure]
Table length=2
date-obsfileobjectfilterexptime
str10str14str7str2float64
2016-01-16ccd.037.0.fitsvv124_1g'300.062
2016-01-16ccd.043.0.fitsvv124_1i'300.014

Next, a look at the calibrated combined images available to us.

combo_calibs = ifc_reduced.summary[ifc_reduced.summary['combined'].filled(False).astype('bool')]
combo_calibs['date-obs', 'file', 'imagetyp', 'object', 'filter', exposure]
Table length=6
date-obsfileimagetypobjectfilterexptime
str10str27str9str6str2float64
2016-01-15combined_bias.fitBIASbiasi'0.0
2016-03-13combined_dark_ 7.000.fitDARKdarkr'7.0
2016-03-13combined_dark_300.000.fitDARKdarkr'300.0
2016-03-13combined_dark_70.000.fitDARKdarkr'70.0
2016-01-16combined_flat_filter_g'.fitFLATFIELDflat_gg'70.001
2016-01-16combined_flat_filter_i'.fitFLATFIELDflat_ii'7.0

Both of these images will use the 300 second dark exposure to remove dark current and there is a flat field image for each of the two filters present in the data.

Though we could hard code which dark to use, it is possible to set up a dictionary for accessing the darks, with a separate one for accessing the science images. The goal is to write code that is more conveniently reused.

combined_darks = {ccd.header[exposure]: ccd for ccd in ifc_reduced.ccds(imagetyp='dark', combined=True)}
combined_flats = {ccd.header['filter']: ccd for ccd in ifc_reduced.ccds(imagetyp=flat_imagetyp, combined=True)}
WARNING: FITSFixedWarning: 'datfix' made the change 'Set MJD-OBS to 57460.000000 from DATE-OBS'. [astropy.wcs.wcs]
WARNING:astropy:FITSFixedWarning: 'datfix' made the change 'Set MJD-OBS to 57460.000000 from DATE-OBS'.
WARNING: FITSFixedWarning: 'datfix' made the change 'Set MJD-OBS to 57403.000000 from DATE-OBS'. [astropy.wcs.wcs]
WARNING:astropy:FITSFixedWarning: 'datfix' made the change 'Set MJD-OBS to 57403.000000 from DATE-OBS'.

The calibration steps for each of these science images are:

  • Subtract the overscan from the science image.

  • Trim the overscan.

  • Subtract the dark current (which in this case also includes the bias).

  • Flat correct the image.

These are the minimum steps needed to calibrate. Gain correcting the data and identifying cosmic rays are additional steps that might often be done at this stage. Identification of cosmic rays will be discussed in this notebook.

# These two lists are created so that we have copies of the raw and calibrated images
# to later in the notebook. They are not ordinarily required.
all_reds = []
light_ccds = []
for light, file_name in ifc_raw.ccds(imagetyp=science_imagetyp, return_fname=True, ccd_kwargs=dict(unit='adu')):
    light_ccds.append(light)

    reduced = ccdp.subtract_overscan(light, overscan=light[:, 2055:], median=True)

    reduced = ccdp.trim_image(reduced[:, :2048])

    closest_dark = find_nearest_dark_exposure(reduced, combined_darks.keys())
    reduced = ccdp.subtract_dark(reduced, combined_darks[closest_dark],
                                 exposure_time=exposure, exposure_unit=u.second
                                )
    good_flat = combined_flats[reduced.header['filter']]
    reduced = ccdp.flat_correct(reduced, good_flat)
    all_reds.append(reduced)
    reduced.write(reduced_path / file_name)
/usr/share/miniconda/envs/test/lib/python3.11/site-packages/astropy/units/quantity.py:671: RuntimeWarning: divide by zero encountered in divide
  result = super().__array_ufunc__(function, method, *arrays, **kwargs)
/usr/share/miniconda/envs/test/lib/python3.11/site-packages/astropy/nddata/nduncertainty.py:881: RuntimeWarning: invalid value encountered in divide
  (left + right + correlation_sign * corr)

5.1.2.1. Before and after for Example 1#

The cell below displays each science image before and after calibration.

fig, axes = plt.subplots(2, 2, figsize=(10, 20), tight_layout=True)

for row, raw_science_image in enumerate(light_ccds):
    filt = raw_science_image.header['filter']
    axes[row, 0].set_title('Uncalibrated image {}'.format(filt))
    show_image(raw_science_image, cmap='gray', ax=axes[row, 0], fig=fig, percl=90)

    axes[row, 1].set_title('Calibrated image {}'.format(filt))
    show_image(all_reds[row].data, cmap='gray', ax=axes[row, 1], fig=fig, percl=90)
WARNING: The following attributes were set on the data object, but will be ignored by the function: meta, unit [astropy.nddata.decorators]
WARNING:astropy:The following attributes were set on the data object, but will be ignored by the function: meta, unit

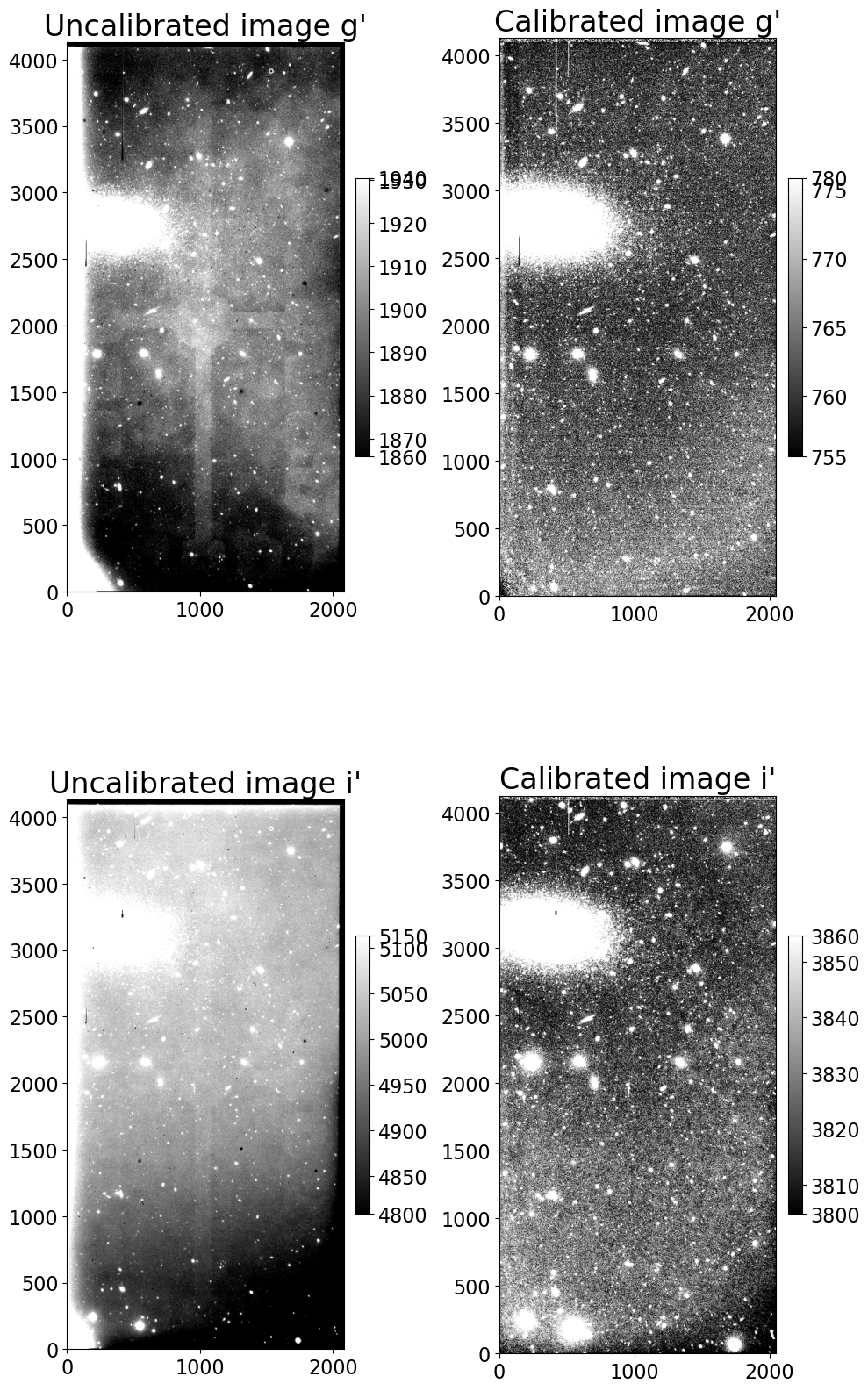

../_images/06-03-science-images-calibration-examples_17_1.png

In each reduced image the overall pattern in the flat field has been removed, and the sensor glow along the left edge and in the bottom left corner of the uncalibrated images has been removed. The background in the calibrated images is still not perfectly uniform, though that background can be removed using photutils if desired. The partial bad column visible in both uncalibrated images is also still present in the calibrated images, particularly in the g' filter.

Those pixels will need to be masked, as described in the notebook on bad pixels.

5.1.3. Example 2#

The camera in this example is a thermoelectrically-cooled Andor Aspen CG16M. In previous notebooks we decided that:

  • The overscan region of this camera is not useful.

  • For this data set the dark frames needed to be scaled, so we need to subtract the bias frame from each science image.

First, we create ImageFileCollections for the raw data and the calibrated data, and define variables for the image type of the flat field and the science images (there are, unfortunately, no standard names for these).

reduced_path = Path('example2-reduced')

science_imagetyp = 'light'
flat_imagetyp = 'flat'
exposure = 'exposure'

ifc_reduced = ccdp.ImageFileCollection(reduced_path)
ifc_raw = ccdp.ImageFileCollection('example-thermo-electric')

Next, we check what science images are available.

lights = ifc_raw.summary[ifc_raw.summary['imagetyp'] == science_imagetyp.upper()]
lights['date-obs', 'file', 'object', 'filter', exposure]
Table length=2
date-obsfileobjectfilterexposure
str19str31objectobjectfloat64
2018-08-23T09:00:21kelt-16-b-S001-R001-C084-r.fitkelt-16br90.0
2018-08-23T10:29:30kelt-16-b-S001-R001-C125-r.fitkelt-16br90.0

There are only two science images, both in the same filter and with the same exposure time.

The combined calibration images available are listed below.

combo_calibs = ifc_reduced.summary[ifc_reduced.summary['combined'].filled(False).astype('bool')]
combo_calibs['date-obs', 'file', 'imagetyp', 'filter', exposure]
Table length=3
date-obsfileimagetypfilterexposure
str19str31str4objectfloat64
2018-08-23T11:20:07combined_bias.fitBIAS--0.0
2018-08-23T10:42:41combined_dark_90.000.fitDARK--90.0
2018-08-23T01:25:17combined_flat_filter_r.fitFLATr1.0

Although there is only one of each type of combined calibration image, the code below sets up a dictionary for the flats and darks. That code will work on a more typical night when there might be several filters and multiple exposure times.

combined_darks = {ccd.header[exposure]: ccd for ccd in ifc_reduced.ccds(imagetyp='dark', combined=True)}
combined_flats = {ccd.header['filter']: ccd for ccd in ifc_reduced.ccds(imagetyp=flat_imagetyp, combined=True)}

# There is only on bias, so no need to set up a dictionary.
combined_bias = [ccd for ccd in ifc_reduced.ccds(imagetyp='bias', combined=True)][0]
WARNING: FITSFixedWarning: RADECSYS= 'FK5 ' / Equatorial coordinate system
the RADECSYS keyword is deprecated, use RADESYSa. [astropy.wcs.wcs]
WARNING:astropy:FITSFixedWarning: RADECSYS= 'FK5 ' / Equatorial coordinate system
the RADECSYS keyword is deprecated, use RADESYSa.

The calibration steps for each of these science images is:

  • Trim the overscan.

  • Subtract bias, because bias was subtracted from the dark frames.

  • Subtract dark, using the dark closest in exposure time to the science image.

  • Flat correct the images, using the combined flat whose filter matches the science image.

all_reds = []
light_ccds = []
for light, file_name in ifc_raw.ccds(imagetyp=science_imagetyp, return_fname=True):
    light_ccds.append(light)

    reduced = ccdp.trim_image(light[:, :4096])

    # Note that the first argument in the remainder of the ccdproc calls is
    # the *reduced* image, so that the calibration steps are cumulative.
    reduced = ccdp.subtract_bias(reduced, combined_bias)

    closest_dark = find_nearest_dark_exposure(reduced, combined_darks.keys())

    reduced = ccdp.subtract_dark(reduced, combined_darks[closest_dark],
                                 exposure_time='exptime', exposure_unit=u.second)

    good_flat = combined_flats[reduced.header['filter']]
    reduced = ccdp.flat_correct(reduced, good_flat)
    all_reds.append(reduced)
    reduced.write(reduced_path / file_name)
WARNING: FITSFixedWarning: RADECSYS= 'FK5 ' / Equatorial coordinate system
the RADECSYS keyword is deprecated, use RADESYSa. [astropy.wcs.wcs]
WARNING:astropy:FITSFixedWarning: RADECSYS= 'FK5 ' / Equatorial coordinate system
the RADECSYS keyword is deprecated, use RADESYSa.
fig, axes = plt.subplots(2, 2, figsize=(10, 10), tight_layout=True)

for row, raw_science_image in enumerate(light_ccds):
    filt = raw_science_image.header['filter']
    axes[row, 0].set_title('Uncalibrated image {}'.format(filt))
    show_image(raw_science_image, cmap='gray', ax=axes[row, 0], fig=fig, percl=90)

    axes[row, 1].set_title('Calibrated image {}'.format(filt))
    show_image(all_reds[row].data, cmap='gray', ax=axes[row, 1], fig=fig, percl=90)
WARNING: The following attributes were set on the data object, but will be ignored by the function: meta, unit, wcs [astropy.nddata.decorators]
WARNING:astropy:The following attributes were set on the data object, but will be ignored by the function: meta, unit, wcs

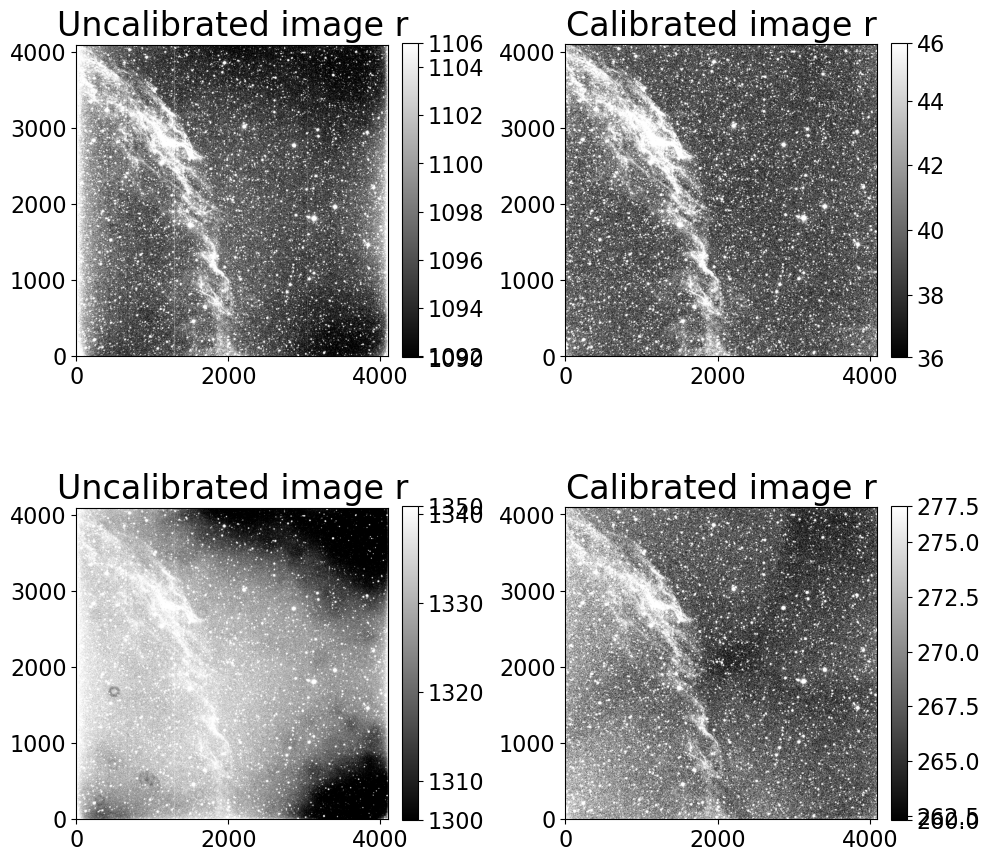

../_images/06-03-science-images-calibration-examples_30_1.png

In both images, most of the nonunifomity in the background has been removed along the bright column and the sensor glow on the left and right edges of the uncalibrated images.

The calibrated image in the top row looks like flat correction has led to a fairly uniform background. The background in the image in the second row is not that uniform. As it turns out the second image was taken much closer to dawn than the first image, so the sky background really was not uniform when the image was taken.
